Ferrosilicon, as an alloy of iron and silicon, is not only a key member of the smelting industry, but also plays an important role in multiple steel fields, such as low-alloy structural steel, spring steel, bearing steel, etc. In response to the processing demand for ferrosilicon, a series of efficient equipment have emerged in the market, especially ferrosilicon crushers, which are favored for their low-cost operation and high yield. The following is a detailed introduction to commonly used equipment in ferrosilicon processing.

Overview of Ferrosilicon Processing Equipment

The production of ferrosilicon originates from the electric furnace smelting process of coke, steel shavings, and quartz (or silica). In order to meet the diverse needs of ferrosilicon crushing, equipment such as jaw crushers, cone crushers, and roller crushers have emerged. Their selection is mainly based on factors such as raw material characteristics, target product specifications, and production volume.

Brief description of processing flow

The raw materials are first uniformly fed into the jaw crusher through a vibrating feeder for preliminary crushing, then enter the cone crusher or the roller crusher for fine crushing, and finally graded through a vibrating screen. Qualified products are transported out by a belt conveyor.

Detailed explanation of main equipment

1. Jaw crusher

As the main force in the initial crushing stage, jaw crushers effectively crush ferrosilicon raw materials by simulating the squeezing motion principle of animal jaws. Its advantages lie in the long lifespan of vulnerable parts, good adaptability to hard materials, and optimized motion parameter design, making the crushing process efficient and with minimal machine wear. Meanwhile, the compact structural design saves installation space.

2. Cone crusher

The cone crusher is known for its extrusion crushing method, which forms a crushing chamber through the rotation and swinging of the moving cone and the stationary cone, and performs multiple compressions and impacts on the silicon iron to achieve efficient crushing. The equipment has low wear and tear, long service life of vulnerable parts, and is equipped with a hydraulic cleaning system to reduce downtime. In addition, diverse cavity selection and advanced control systems ensure operational flexibility and stability.

3. Roll crusher

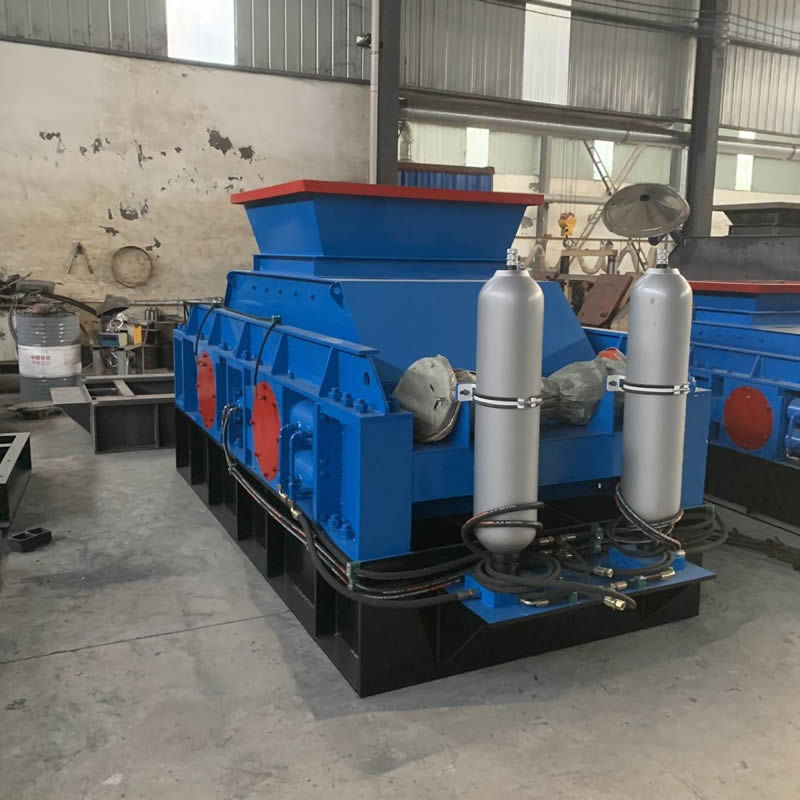

Hydraulic double roll crusher

The roll crusher adopts a double roll design, which achieves the crushing of ferrosilicon through the relative rotation between the two rolls. Its advantages lie in the small size of the equipment, high crushing ratio, uniform particle size, and low over crushing rate. The dual motor drive provides powerful power support, especially suitable for crushing and processing materials such as coke, effectively reducing production costs and investment.

In summary, it is crucial to choose appropriate crushing equipment during the processing of ferrosilicon. Based on the characteristics of raw materials, production needs, and economic benefits, equipment such as jaw crushers, cone crushers, or roller crushers can be flexibly selected to ensure the high efficiency and stability of ferrosilicon processing.
